Tango Pro

UltraEfficient and Versatile LED Floodlight

Products

Product Compare
BVP564 LED410/740 240W EP AMB
911401650109
171
41000
4000
BVP565 LED672/740 430W EP NB
911401612909
156
67200
4000
BVP565 LED672/757 430W EP SWB
911401612609
156
67200
5700
BVP565 LED601/757 370W FP NB
911401615109
162
60100
5700
BVP565 LED601/740 370W FP SWB
911401613909
162
60100
4000
BVP564 LED625/740 380W EP SMB
911401651409
164
62500
4000
BVP564 LED590/740 410W WLP NB
911401653909
144
59000
4000
BVP564 LED410/757 240W EP AMB
911401650209
171
41000
5700

Product family information

Description

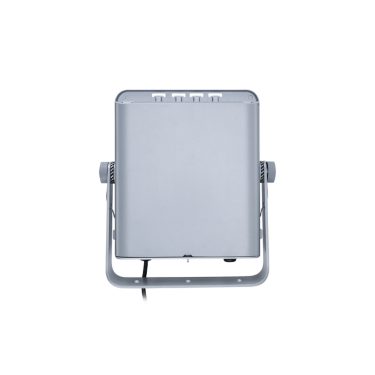

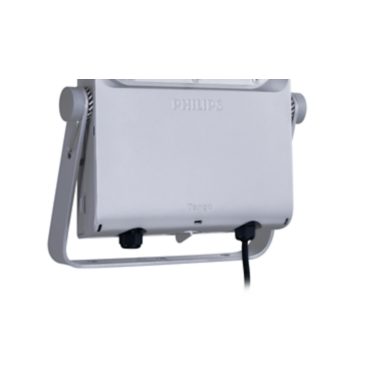

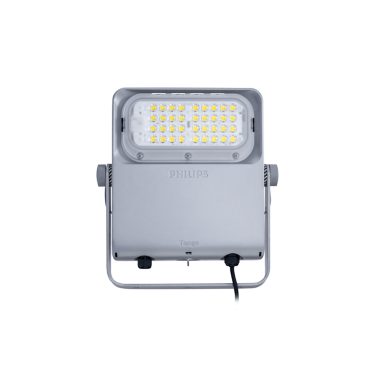

Philips Tango Pro LED floodlight is the fifth generation of the Philips Tango LED floodlight. Tango Pro takes efficiency to the next level, delivering industry-best efficiency in a compact but elegant design. The luminaire can be applied in a versatile range of applications, from area lighting to recreational sports facilities. The LED driver comes in compact and robust housing that meets globally recognized safety standards. Its specially designed heat sink incorporates aesthetics and functionality to ensure excellent reliability. The modular, streamlined luminaire silhouette offers a visually balanced design. Philips Tango Pro LED floodlight is engineered to create brighter and safer environments. Powered by the latest LED technology, Tango Pro delivers superior performance in both light distribution and UltraEfficiency 170lm/W and up to 200lm/W. The long luminaire lifetime and recyclable materials supports your efforts to meet sustainability targets.

Benefits

  • Product comes in High Efficiency and UltraEfficient versions for low carbon emissions and energy savings.

  • 6 optics, 12 driver options and accessories (external louvers, safety chain, aiming device) allow you to meet a wide range of application requirements.

  • Connected and system-ready (ready for interact and ZD4i) to be compatible with Interact platform.

Features

  • UltraEfficiency version offers 170lm/W and system efficacy up to 200lm/W.

  • Lumen packages ranging from 8,500 lumens to 85,000 lumens.

  • High quality ADC1 diecast aluminum housing and stainless-steel bracket.

Applications

Airports, Arena and sports, Parking garages, Buildings, monuments, and façades, Transportation terminals and tollways, Billboard, Ports and container yard, Large industrial areas

Warning & Safety

  • For coastline applications, 2,000 hours (or above) MSP recommended (liability for wear-and-tear damages exempted)

  • Not suitable for chemical industrial areas

  • Not suitable for installation on moving objects

See what’s trending: Explore popular products in these families

Specifications

  • Material
    Housing: die-cast aluminium Bracket: carbon steel and stainless steel optional
  • Light Source
    LED module
  • Installation
    Surface mounted with Bolts M16, Flat washer D16, Spring washer D16
  • Connection
    1.5m leading cable
  • Luminous flux
    Up to 80000lm at ta=50℃
  • Correlated color temperature - CCT
    5050:718/722/727/730/740/750/757/830/840/857
  • Luminaire efficacy
    Typical 170lm/W Up to 200lm/W
  • Color Rendering index - CRI
    CRI70, CRI80
  • Optical distribution
    NB:13° ; SMB: 57° S6:24° ; SWB: 78° *27° AMB: Asym 36° and 92° * 52° SAWB:Asym 61° and 118° *15°
  • Luminaire light beam spread
    Symmetrical narrow Beam Symmetrical Middle Beam Symmetrical Wide Beam Super Asymmetric Wide Beam
  • Power
    Up to 510W
  • Mains Voltage
    Depending on driver configured, 220-240V for EP 1-10V; DALI; Coded Mains; SR, 110-277V for GL
  • Control system input
    DALI / 1-10V / coded mains
  • Dimming
    DALI / 1-10V
  • Operating Temperature range
    -40 to +50 ºC for config at ta=50C
  • Accessories
    Safety chain Unified aiming device same as AVOV * aiming device adaptor to be ordered separately
  • Ingress protection
    IP66
  • Certification
    CB/EMC/CQC/SAA
