    • The new generation of energy-saving tube lighting

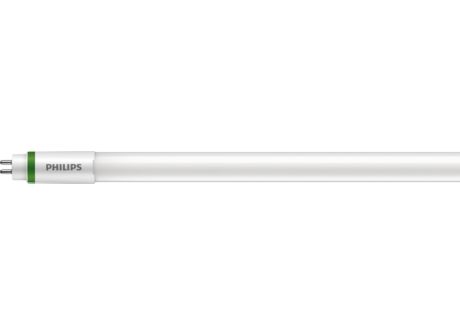

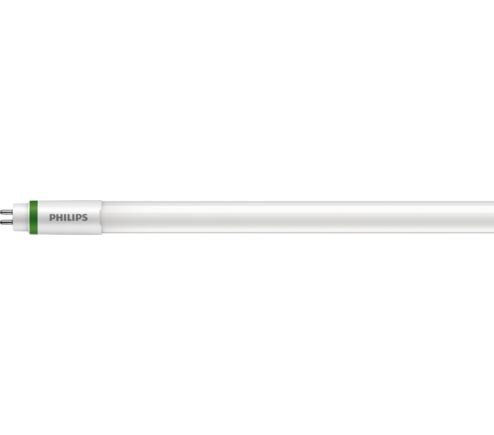

      MAS Ledtube 600mm HO 8.3W 840 T5 DC
      LED
      MAS Ledtube 600mm HO 8.3W 840 T5 DC
      Other LEDtube

      MAS Ledtube 600mm HO 8.3W 840 T5 DC

      Downloads

      Spec Sheet
      Size:678.9 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Power Consumption
    8.3 W
    Lamp Current (Nom)
    150 mA
    Voltage (Nom)
    52-59 V
    Input Frequency
    - Hz
    Line Frequency
    - Hz
    Starting Time (Nom)
    0.5 s
    Warm-up time to 60% light
    0.5 s
    Approval and Application
    Energy Consumption kWh/1000 h
    9 kWh
    Energy Saving Product
    Yes
    Approval Marks
    RoHS compliance
    CE marking
    KEMA Keur certificate
    EU RoHS compliant
    Yes
    Product Data
    EAN/UPC - Case
    8718699765200
    Material number (12NC)
    929002387208
    Full product code
    871869976519400
    Order code
    929002387208
    Numerator - Packs per outer box
    20
    Order product name
    MAS Ledtube 600mm HO 8.3W 840 T5 DC
    Numerator - Quantity Per Pack
    1
    Full product name
    MAS Ledtube 600mm HO 8.3W 840 T5 DC
    Controls and Dimming
    Dimmable
    Yes
    General Information
    Lighting Technology
    LED
    Nominal lifetime
    50,000 hour(s)
    Switching Cycle
    200,000
    Cap-Base
    G5  [G5]
    Mechanical and Housing
    Bulb Material
    Glass
    Product Length
    600 mm
    Bulb Finish
    Frosted
    Bulb Shape
    Tube, double-ended
    Temperature
    Ambient temperature range
    -20 °C to 45 °C
    T-Case Maximum (Nom)
    45 °C
    Light Technical
    Correlated Color Temperature (Nom)
    4000 K
    Color Consistency
    <6
    Beam Angle (Nom)
    160 degree(s)
    Luminous Efficacy (rated) (Nom)
    150.00 lm/W
    Luminous Flux
    1,250 lumen
    Color Designation
    Cool White (CW)
    Color Code
    840  [CCT of 4000K]
    Color rendering index (CRI)
    82
    LLMF At End Of Nominal Lifetime (Nom)
    70 %

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
    Dimension Drawing (with table) - MAS Ledtube 600mm HO 8.3W 840 T5 DC
    Dimension Drawing (with table) - MAS Ledtube 600mm HO 8.3W 840 T5 DC
    G5
    G5
    Performance Diagrams
    Lumen Maintenance Diagram - MAS Ledtube 600mm HO 8.3W 840 T5 DC
    Lumen Maintenance Diagram - MAS Ledtube 600mm HO 8.3W 840 T5 DC
    Lumen Maintenance Diagram - MAS Ledtube 600mm HO 8.3W 840 T5 DC
    Lumen Maintenance Diagram - MAS Ledtube 600mm HO 8.3W 840 T5 DC
    Life Expectancy Diagram - MAS Ledtube 600mm HO 8.3W 840 T5 DC
    Life Expectancy Diagram - MAS Ledtube 600mm HO 8.3W 840 T5 DC
    Life Expectancy Diagram
    Life Expectancy Diagram
    Life Expectancy Diagram
    Life Expectancy Diagram
    Photometrics
    General uniform lighting - MAS Ledtube 600mm HO 8.3W 840 T5 DC
    General uniform lighting - MAS Ledtube 600mm HO 8.3W 840 T5 DC
    Spectral Power Distribution Colour - MAS Ledtube 600mm HO 8.3W 840 T5 DC
    Spectral Power Distribution Colour - MAS Ledtube 600mm HO 8.3W 840 T5 DC
    Light Distribution Diagram - MAS Ledtube 600mm HO 8.3W 840 T5 DC
    Light Distribution Diagram - MAS Ledtube 600mm HO 8.3W 840 T5 DC
    Downloads
    Leaflets
    Green Data
    Visuals
    Software Plugins
    • IES IES File - MAS Ledtube 600mm HO 8.3W 840 T5 DC IES 35.7 kB
