MASTER LEDtube 1500mm UO 21.7W 840 T8

Specifications Show all

General information

Cap base	G13 ROT (Rotating)  [ Medium Bi-Pin Fluorescent]
CE mark	Yes
EU RoHS compliant	Yes
Nominal lifetime (nom.)	75000 h
Switching cycle	200000
	Sphere
Tier	MASTER

Light technical

Colour Code	840  [ CCT of 4,000 K]
Technical Beam Angle (Nom)	160 °
Lamp Luminous Flux 25°C EL (Nom)	3700 lm
Colour Designation	Cool White (CW)
Colour Temperature, horizontal (Nom)	4000 K
Lamp Luminous Efficacy EM (Nom)	170 lm/W
Colour consistency	<6
Colour Rendering Index,horiz (Nom)	80

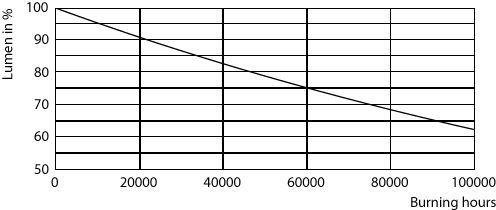

LLMF at end of nominal lifetime (nom.)	70 %

Operating and electrical

Input frequency	50 to 60 Hz
Power (Rated) (Nom)	21.7 W
Lamp current (max.)	108 mA
Lamp current (min.)	89 mA
Starting time (nom.)	0.5 s
Warm-up time to 60% light (nom.)	0.5 s
Power factor (nom.)	0.9
Voltage (Nom)	220-240 V

Temperature

T-ambient (max.)	45 °C
T-ambient (min.)	-20 °C
T storage (max.)	65 °C
T storage (min.)	-40 °C
T-Case maximum (nom.)	60 °C

Controls and dimming

Dimmable

No

Mechanical and housing

Lamp Finish	Frosted
Bulb material	Plastic
Product length	1500 mm
Bulb shape	Tube, double-ended

Approval and application

Energy Efficiency Class	C
Energy-saving product	Yes
Approval marks	RoHS compliance	TUV	CE marking	KEMA Keur certificate
Energy consumption kWh/1,000 hours	22 kWh
	1206977

Product data

Full product code	871951431664500
Order product name	MASTER LEDtube 1500mm UO 21.7W 840 T8
EAN/UPC – product	8719514316645
Order code	929002998602
SAP numerator – quantity per pack	1
Numerator – packs per outer box	10
SAP material	929002998602
Net Weight (Piece)	0.285 kg
