Truefashion Projector GCGM

Elegant outlook design projector for the retail segment

Products

Product Compare
GD700B LED10 830 PSU MB WH
911401518371
114
942
3000
RS700B LED40 930PC PSU MB WH
911401522171
85
3429
3000
GD700B LED20 930PW PSU MB WH
911401518571
79
1685
3000
RS700B LED10 830 PSU MB WH
911401519471
114
942
3000
RS700B LED30 930PW PSU WB WH
911401520871
91
2809
3000
ST700T LED30 930PC PSU MB 1C WH
911401547261
71
2684.72
3000
ST700T LED30 930PC PSU WB 1C WH
911401547361
68
2575.9
3000
ST700T LED30 930PW PSD VLC WB WH
911401576261
85
3001.68
3000

Product family information

Description

Truefashion Projector is offering a retail segment with attractive outlook design, excellent quality of light & dedicated light recipe as well as system connectivity, to create a comfortable ambiance and impressive shopping experience to stimulate the store sales for retail customers.

Benefits

  • Slim and compact outlook design with inside track driver.

  • Excellent light quality of punch effect.

  • Dedicated light recipe for fashion and food.

Features

  • Lumen packages (1000/2000/3000/4000lm).

  • 3 beams options (NB/MB/WB).

  • Dali-VLC Control.

Applications

Retail fashion store, Shopping mall, Food & large retail

Warning & Safety

  • 3 years

See what’s trending: Explore popular products in these families

Specifications

  • Type

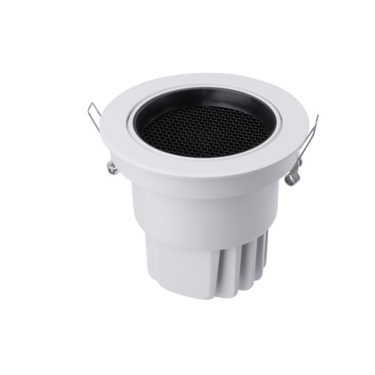

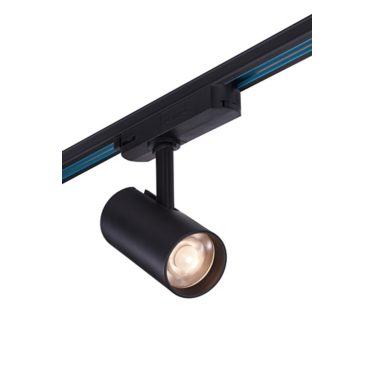

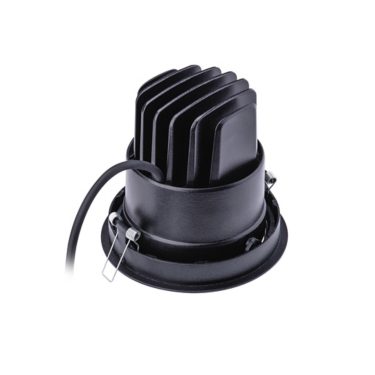

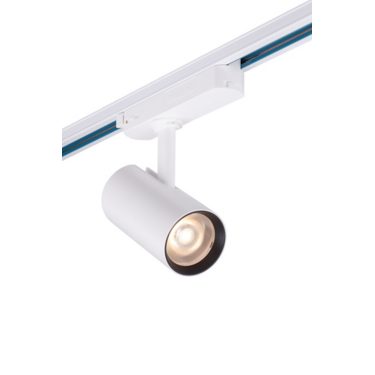

    ST700T: Tracklight RS700B: recessed round GD700B: recessed square
  • Mounting type
    Track installation Recessed
  • Operating Temperature range
    -15 to +35°C
  • Light Source
    COB
  • Mains Voltage
    220-240V AC/ 50-60Hz
  • Dimming
    PSD: Dimmable via Dali protocol
  • Control system input
    DALI
  • Material
    Housing: die-cast aluminum
  • Main color of the luminaire
    White RAL9003 / Black RAL9011
  • Lumen maintenance at median useful life 50.000h
    L70
  • Luminous flux
    1000lm - 4000lm
  • Power consumption
    8.2W - 40.3W
  • Correlated color temperature - CCT
    3000K,4000K,Premium White, Premium Color
  • Color Rendering index - CRI
    80/90
  • Beam angle
    VNB(Very Narow Beam): 11° NB (Narrow Beam): 13-19° MB (Medium Beam): 23-24° WB (Wide Beam): 30-34°
  • Protection Class IEC61140
    Class II
  • Ingress protection
    IP20
  • Installation
    Track Recessed
