Products

Product Compare
BN398X LED40/840 L1200 L1 S OP
911401564991
142
3700
4000
BN398C LED40/NW L1200 PSU WB
911401585851
141
4100
4000
BN398C LED20/NW L600 PSD OP
911401584051
144
2100
4000
BN398X LED40/865 L1200 L1 S OP
911401565091
142
3700
6500
BN398C LED20/CW L600 PSU OP
911401583351
147
2100
6500
BN398C LED69/CW L1200 PSU DA
911401585351
123
6800
6500
BN398C LED40/CW L1200 PSU OP
911401583551
141
4100
6500
BN398X LED40/840 L1200 L1 S WB
911401565191
146
3800
4000

Product family information

Description

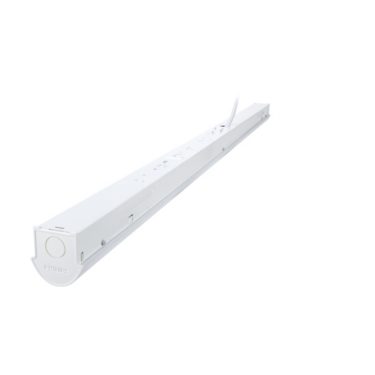

GreenPerform batten BN398C is a cost competitive linear solution with good performance and multiple lumen output for retail and industry applications. It offers surface mount and suspension installations to cater for different mounting options. Its multiple optic designs accommodate different applications as well.

Benefits

  • High system efficacy with better energy saving

  • Multiple optics for different applications

  • Connected for future proof

Features

  • System efficiency up to 140lm/W

  • Wide and batwing beams available to fit different lighting applications

  • DALI and Interact are available for easy control

Applications

Food & large retail, Warehouse, Factory, Indoor pubic area

See what’s trending: Explore popular products in these families

Specifications

  • Mounting type
    Suspended Ceiling
  • Light Source
    LED
  • Mains Voltage
    220-240V / 50-60Hz
  • Dimming
    PSU PSD POE WIA
  • Material
    Housing: SPCC Cover: PMMA
  • Main color of the luminaire
    WH: RAL 9003
  • Lumen maintenance at median useful life 50.000h
    L70B50
  • Luminous flux
    2000lm~8700lm
  • Luminaire efficacy
    Up to 150lm/W
  • Correlated color temperature - CCT
    4000K/6500K
  • Color Rendering index - CRI
    80
  • Beam angle
    WB
  • Protection Class IEC61140
    Safety class I; Safety class III - POE
  • Mechanical impact protection
    IK03
  • Ingress protection
    IP20
  • Overall length
    600mm 1200mm 1500mm
