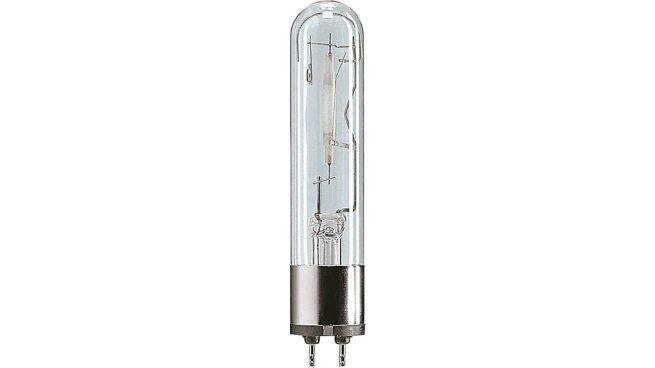

      MASTER SDW-T 50W/825 PG12-1 1SL/12
      MASTER SDW-T 50W/825 PG12-1 1SL/12

      MASTER SDW-T 50W/825 PG12-1 1SL/12

      Order code: 928153909227

      Full Product Code: 871150073403715

      Downloads

      Spec Sheet
      Size:422.4 kB

      See all downloads

    Specifications Show all

    General Information
    Cap base
    PG12-1  [ PG12-1]
    Burning Position
    UNIVERSAL  [ Any/Universal]
    Life to 5% failures (nom.)
    8000 h
    Life to 20% failures (nom.)
    12000 h
    Life to 50% failures (nom.)
    15000 h
    Useful life (nom.)
    10000 h
    ANSI code HID
    -
    System description
    High Voltage  [ 200-250V (HV)]
    Light Technical
    Colour Code
    825  [ CCT of 2,500 K]
    Lamp Luminous Flux (Nom)
    2300 lm
    Colour Designation
    Golden White
    Lumen maintenance 2,000 hours (nom.)
    95 %
    Lumen maintenance 5,000 hours (nom.)
    90 %
    Chromaticity coordinate X (nom.)
    471
    Chromaticity coordinate Y (nom.)
    409
    Colour Temperature, horizontal (Nom)
    2500 K
    Lamp Luminous Efficacy EM (Nom)
    44 lm/W
    Colour Rendering Index,horiz (Nom)
    83
    Operating and Electrical
    Power (Rated) (Nom)
    53.0 W
    Lamp current run-up (max.)
    1.5 A
    Lamp current (EM) (nom.)
    0.76 A
    Ignition peak voltage (max.)
    5000 V
    Ignition supply voltage (min.)
    205 V
    Voltage (Max)
    102 V
    Voltage (Min)
    82 V
    Voltage (Nom)
    92 V
    Controls and Dimming
    Dimmable
    no
    Mechanical and Housing
    Bulb finish
    Clear
    Bulb material
    Soft Glass
    Approval and Application
    Energy efficiency label (EEL)
    B
    Mercury (Hg) content (nom.)
    7.6 mg
    Energy Consumption kWh/1000 h
    58 kWh
    Luminaire Design Requirements
    Bulb temperature (max.)
    350 °C
    Cap base temperature (max.)
    120 °C
    Product Data
    Full product code
    871150073403715
    Order product name
    MASTER SDW-T 50W/825 PG12-1 1SL/12
    EAN/UPC – product
    8711500734037
    Order code
    928153909227
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    12
    Material no. (12NC)
    928153909227
    Net weight (piece)
    0.048 kg
    ILCOS Code
    STH-50-H/E-PG12

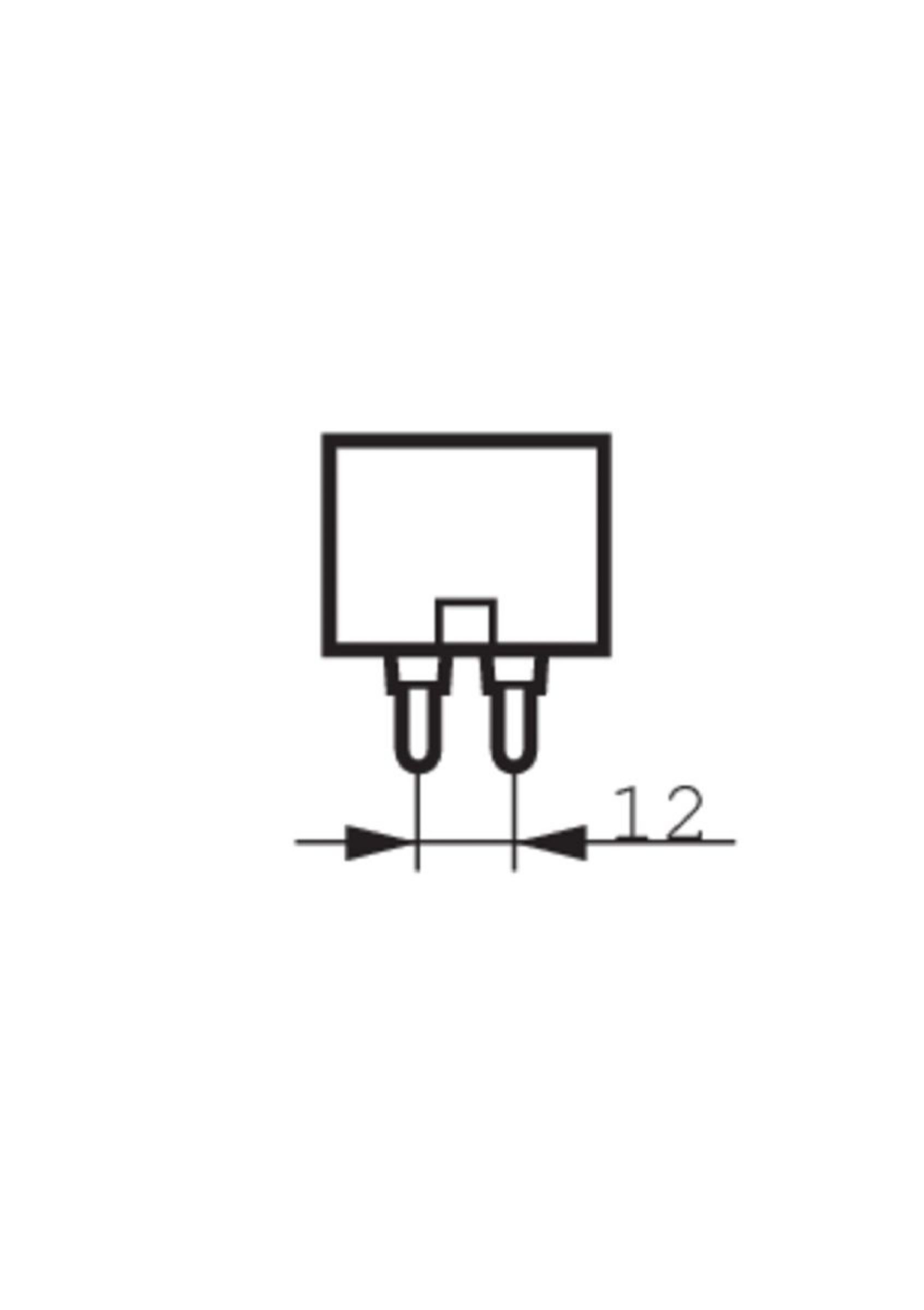

    Installation Diagrams
     50.0 W PG12-1
    50.0 W PG12-1
    PG12-1
    PG12-1
    Performance Diagrams
    LDRU_SDW-T-Lamp performance during run-up
    LDRU_SDW-T-Lamp performance during run-up
    LDSL_SDW-T_100W_825-Service Lifetime
    LDSL_SDW-T_100W_825-Service Lifetime
    Photometrics
    LDPO_SDW-T_35W_50W_100W-Spectral power distribution Colour
    LDPO_SDW-T_35W_50W_100W-Spectral power distribution Colour
    LDLD_SDW-T-Light distribution diagram
    LDLD_SDW-T-Light distribution diagram
