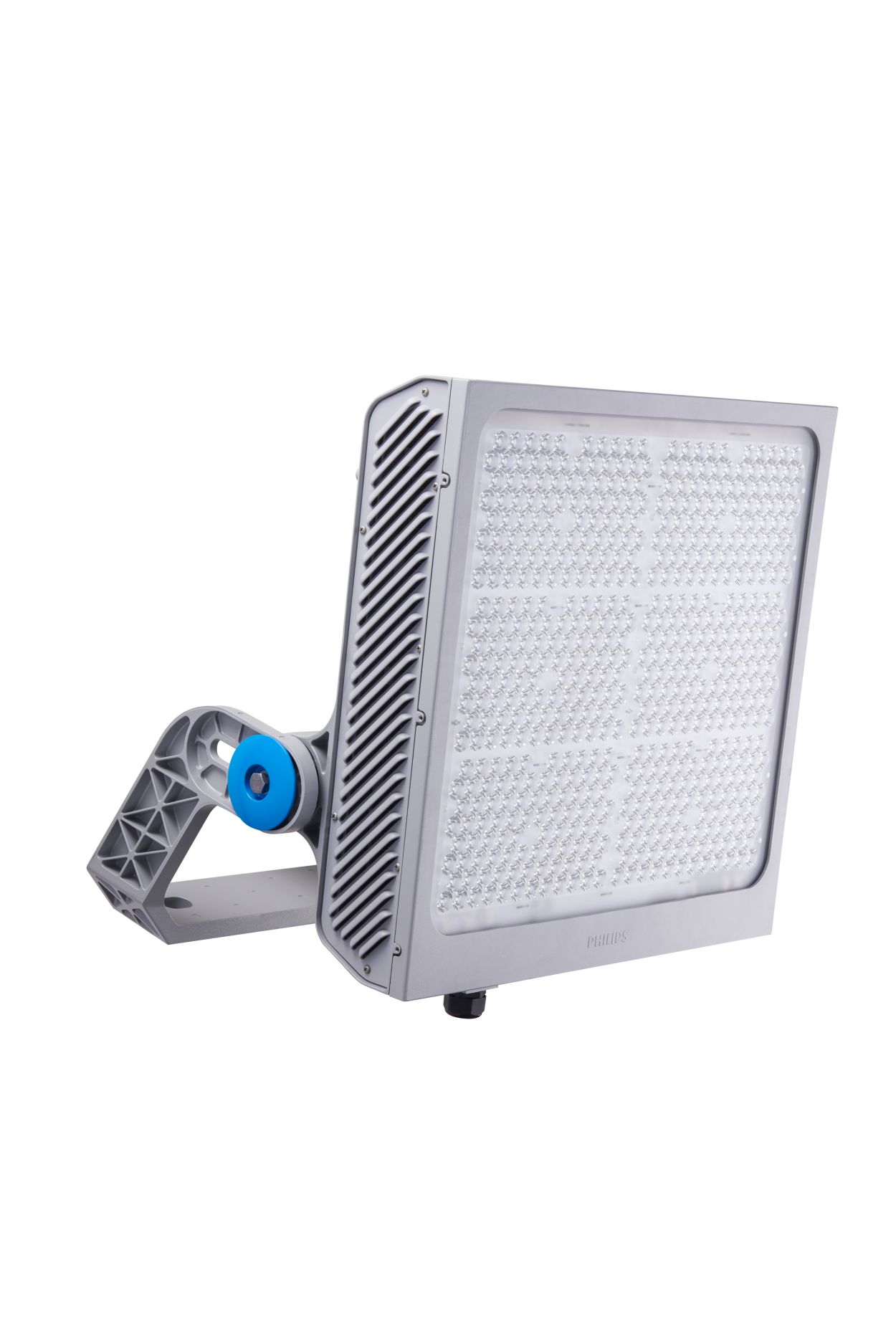

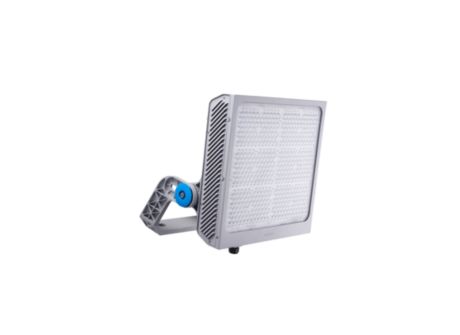

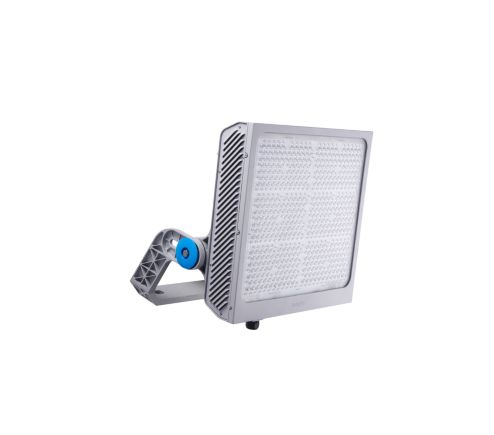

BVP680 LED1620/957 1620W 200-242V S2

Specifications Show all

General information

Lamp colour code	957 cool white
Driver included	Yes
Optical cover/lens type	PCF  [ Polycarbonate bowl/cover frosted]
Control interface	Dynamic DMX/RDM
Connection	Push-in connector 5-pole (PI)
Cable	-
Protection class IEC	Safety class I (I)
Flammability mark	F  [ For mounting on normally flammable surfaces]
CE mark	CE mark

Operating and electrical

Input Voltage	200 to 242 V
Input frequency	50 or 60 Hz
Power factor (min.)	0.95

Controls and dimming

Dimmable

Yes

Mechanical and housing

Housing material	Aluminum die–cast
Optical cover/lens material	Polycarbonate
Overall length	580 mm
Overall width	555 mm
Overall height	352 mm
Effective projected area	0.25 m²
Colour	Grey
Dimensions (height x width x depth)	352 x 555 x 580 mm

Approval and application

Ingress protection code	IP66  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK08  [ 5 J vandal-protected]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	162000 lm
Luminous flux tolerance	+/-7%
Initial LED luminaire efficacy	100 lm/W
Lamp colour temperature	5700 K
Colour Rendering Index	>90
Initial input power	1620 W
Power consumption tolerance	+/-10%

Application conditions

Ambient temperature range

-40 to +50 °C

Product data

Full product code	911401642606
Order product name	BVP680 LED1620/957 1620W 200-242V S2
Order code	911401642606
SAP numerator – quantity per pack	1
Numerator – packs per outer box	1
SAP material	911401642606
Net Weight (Piece)	17.700 kg
