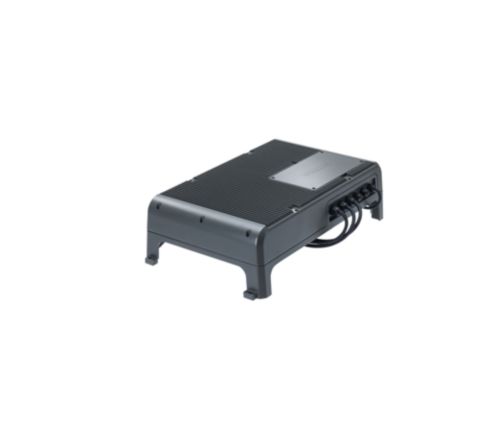

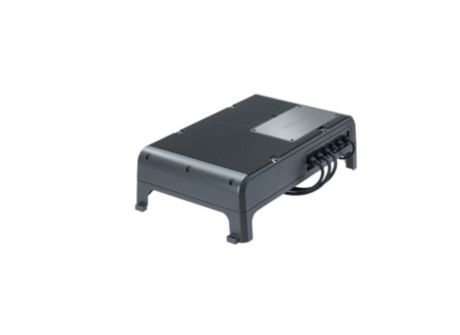

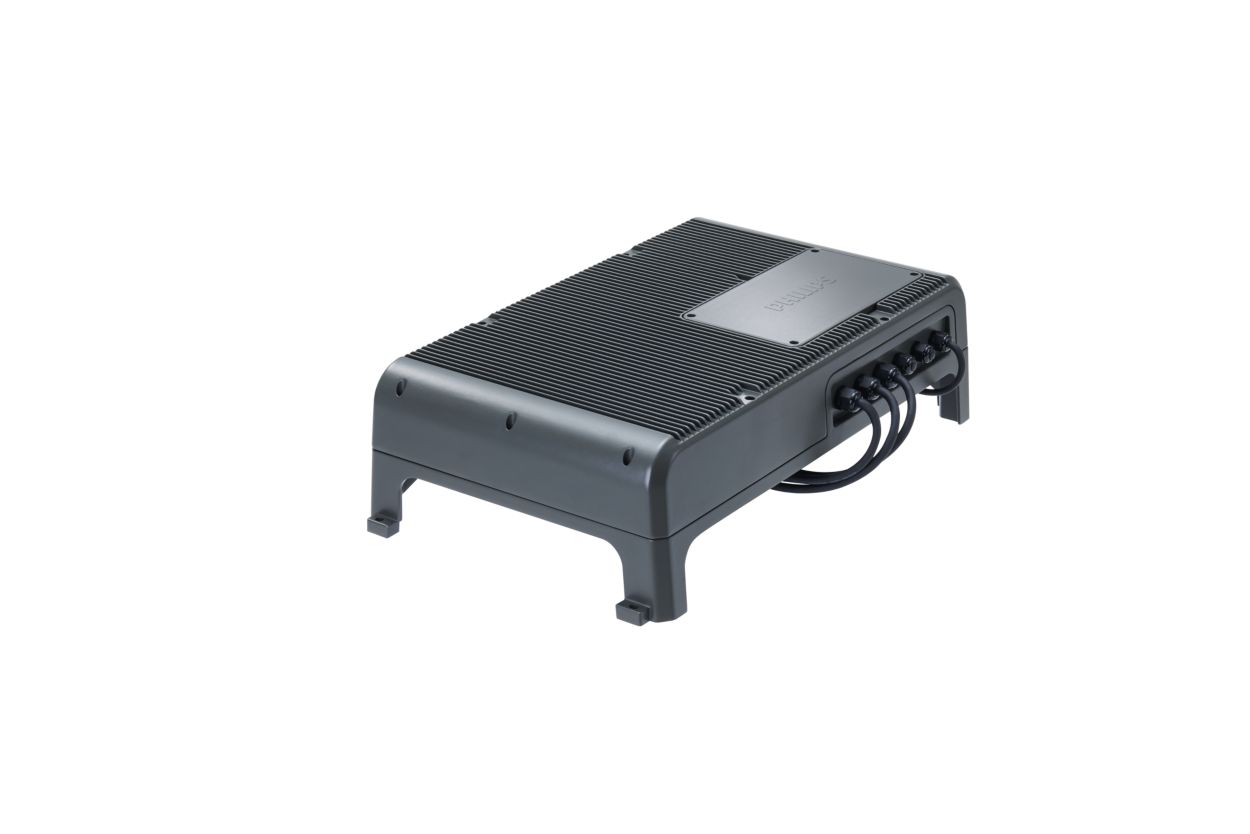

EVP622 IP66 900W 220-240V DMX GC O

Specifications Show all

Operating and Electrical

Power Consumption	900 W
Cable	Cable 1.5 m without plug
Input Frequency	50 or 60 Hz
Power Factor (Fraction)	0.9
Line Frequency	50 or 60 Hz
Connection	Flying leads/wires
Input Voltage	220 to 240 V

Approval and Application

CE mark	-
Flammability mark	-
Protection class IEC	Safety class I
Mech. impact protection code	IK08  [5 J vandal-protected]
Ingress protection code	IP66  [Dust penetration-protected, jet-proof]

Product Data

Material number (12NC)	911401594951
Full product code	911401594951
Order product name	EVP622 IP66 900W 220-240V DMX GC O
Order code	911401594951
Numerator - Packs per outer box	1
Numerator - Quantity Per Pack	1
Full product name	EVP622 IP66 900W 220-240V DMX GC O

Controls and Dimming

Dimmable	Yes
Control interface	Dynamix DMX

General Information

Light source replaceable	No
Driver included	Yes

Mechanical and Housing

Dimensions (Height x Width x Depth)	165 x 361 x 580 mm
Overall height	165 mm
Optical cover/lens material	-
Overall width	361 mm
Optical cover/lens finish	-
Overall length	580 mm
Housing Color	Dark gray
Mounting device	-
Housing Material	Aluminum

Initial Performance (IEC Compliant)

Power consumption tolerance

+/-10%

Application Conditions

Maximum dim level

1%

Temperature

Ambient temperature range

-40 to +50 °C

Light Technical

Correlated Color Temperature (Nom)	-
Standard tilt angle posttop	-
Light source color	-
Color rendering index (CRI)	-
Standard tilt angle side entry	-
Optical cover/lens type	-
