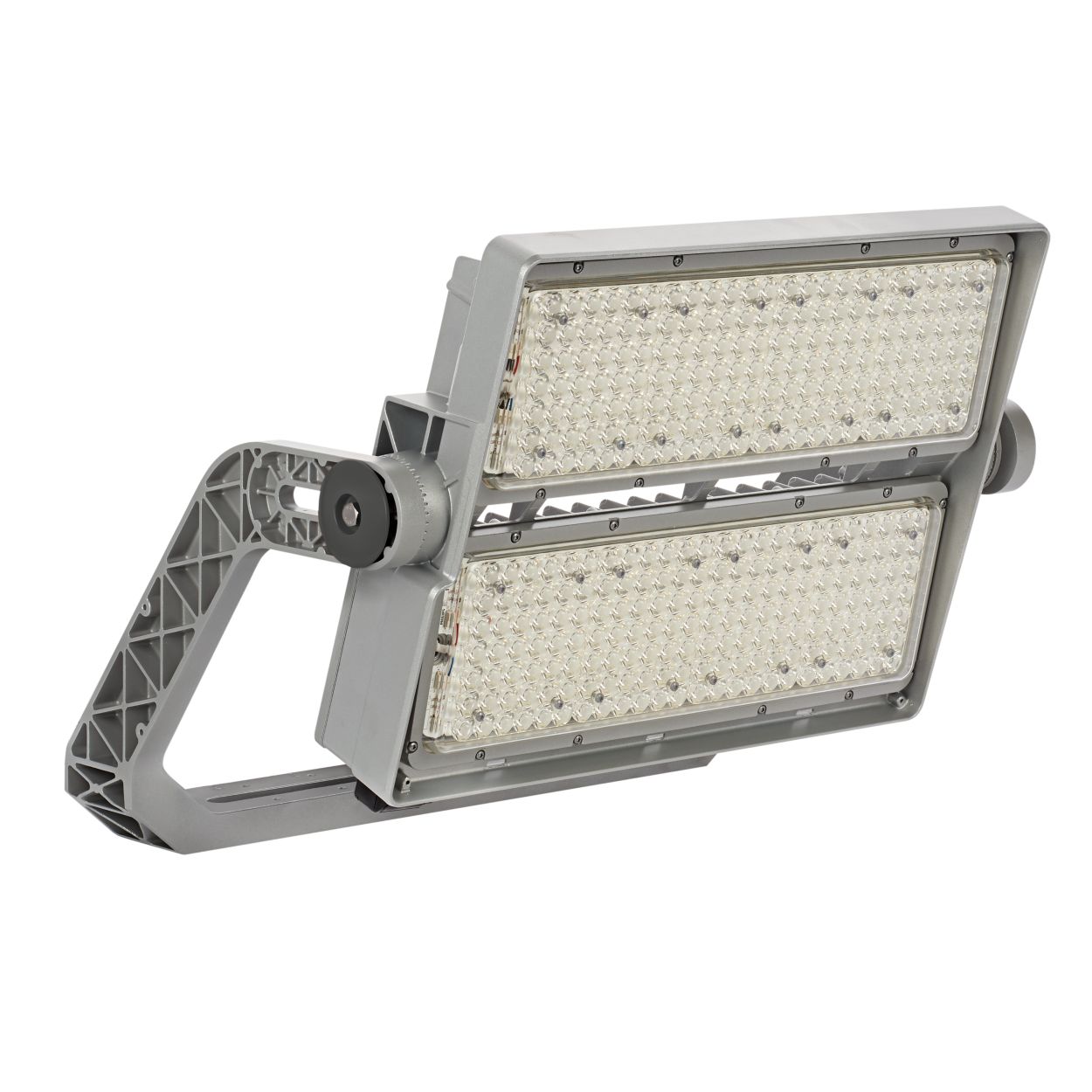

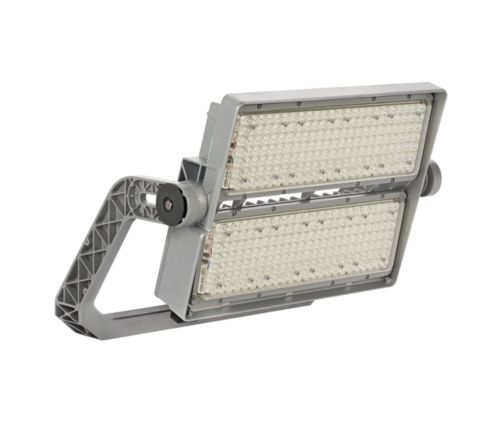

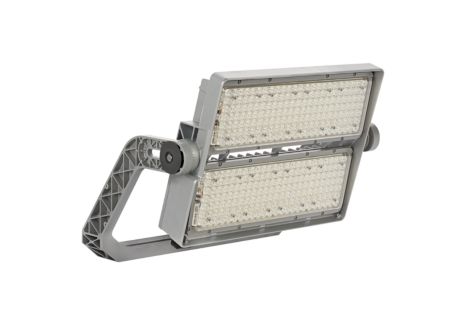

BVP518 C LED1230/757 890W A35-MB BV

Specifications Show all

General information

Lamp colour code	757 cool white
Driver included	Yes
Optical cover/lens type	Polycarbonate
Control interface	DALI
Connection	CU7  [ Connection unit 7-pole]
Cable	-
Protection class IEC	Safety class I (I)
Flammability mark	F  [ For mounting on normally flammable surfaces]
CE mark	CE mark

Operating and electrical

Input Voltage	230 to 400 V
Input frequency	50 to 60 Hz
Inrush current	30 A
Power factor (min.)	0.95

Controls and dimming

Dimmable

Yes

Mechanical and housing

Housing material	Aluminium Alloy
Optical cover/lens material	Polycarbonate
Overall length	538 mm
Overall width	695 mm
Overall height	434 mm
Effective projected area	0.34 m²
Colour	Aluminium
Dimensions (height x width x depth)	434 x 695 x 538 mm

Approval and application

Ingress protection code	IP66  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK08  [ 5 J vandal-protected]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	123000 lm
Luminous flux tolerance	+/-7%
Initial LED luminaire efficacy	138 lm/W
Lamp colour temperature	5700 K
Colour Rendering Index	>70
Initial chromaticity	(0.382, 0.379) SDCM <5
Initial input power	890 W
Power consumption tolerance	+/-10%

Application conditions

Ambient temperature range

-40 to +45 °C

Product data

Order product name	BVP518 C LED1230/757 890W A35-MB BV
Order code	911401636707
SAP numerator – quantity per pack	1
Numerator – packs per outer box	1
SAP material	911401636707
Net Weight (Piece)	27.590 kg
