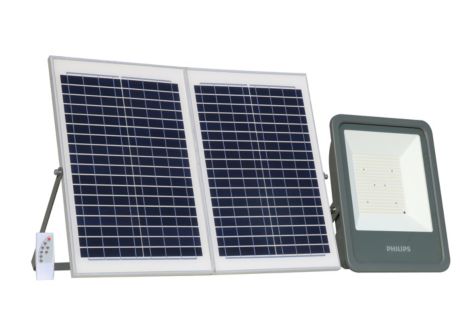

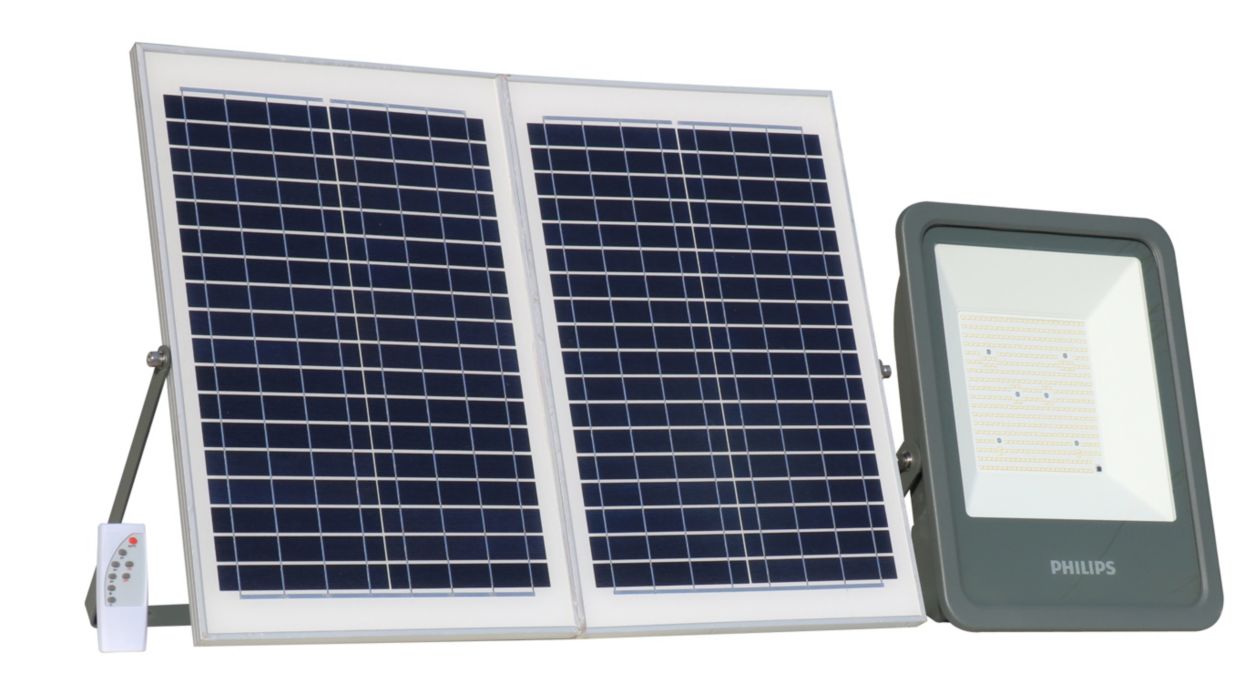

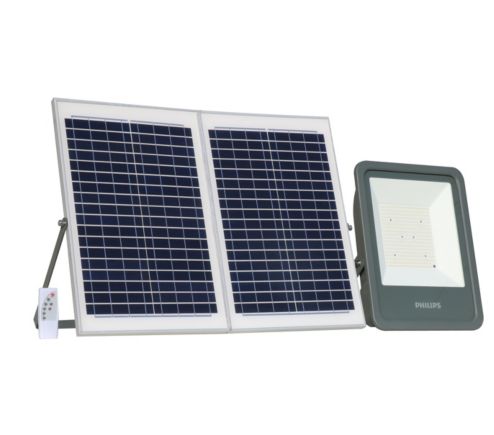

BVP080 LED48/757 200

Specifications Show all

General information

Driver included	Yes
Optical cover/lens type	Reflector
Material	Aluminum

Operating and electrical

Battery type	Lithium Ferro Phosphate
Battery voltage	12.8 V
Panel type	Poly crystalline
Panel voltage	12 V
Panel peak wattage	50 W
Cable connection kit	Included

Controls and dimming

Dimmable	Wireless Dim
Configurability	Configurable

Mechanical and housing

Overall length	451 mm
Overall width	323 mm
Overall height	90 mm
Colour	RAL 9007

Approval and application

Ingress protection code	IP66  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK07  [ 2 J reinforced]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	4800 lm
Lamp colour temperature	-
Colour Rendering Index	>70

Application conditions

Ambient temperature range	0 to +45 °C
Solar dimming profile	As per remote controller
Grid connection type	Off grid
Battery location	Inside luminaire

Product data

Full product code	871951450745600
Order product name	BVP080 LED48/757 200
EAN/UPC – product	8719514507456
Order code	911401859981
SAP numerator – quantity per pack	1
Numerator – packs per outer box	1
SAP material	911401859981
Net Weight (Piece)	12.000 kg
