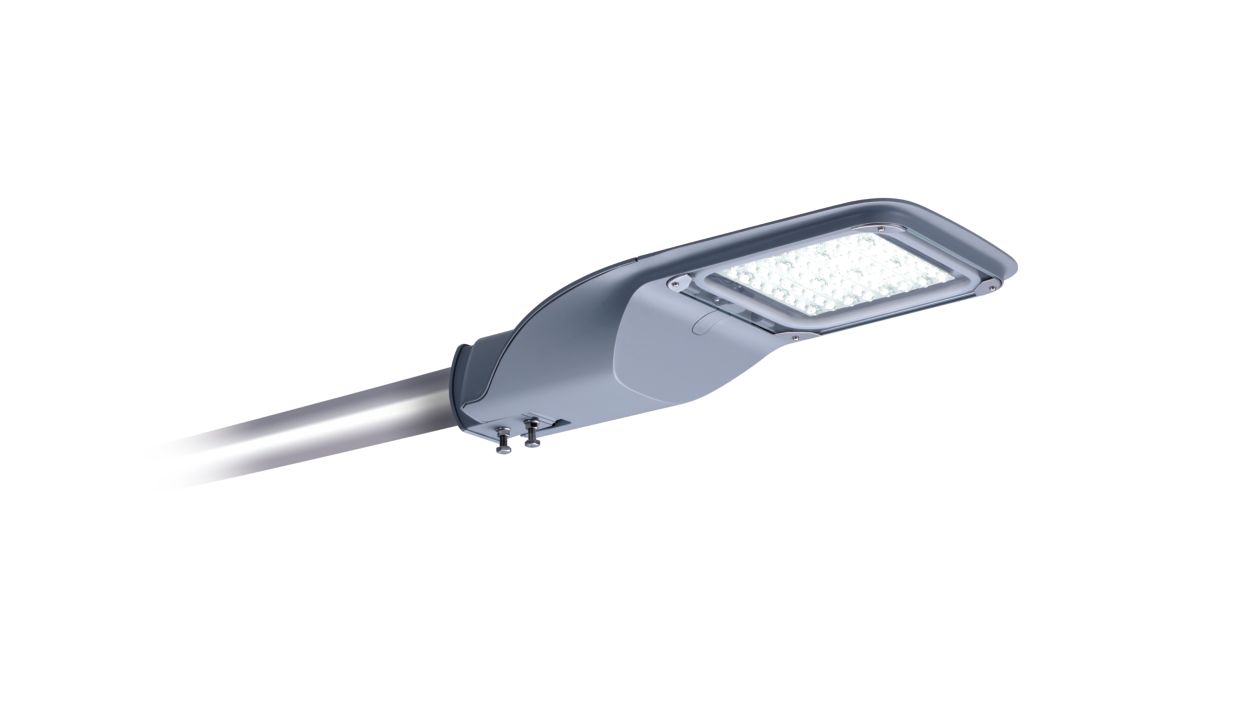

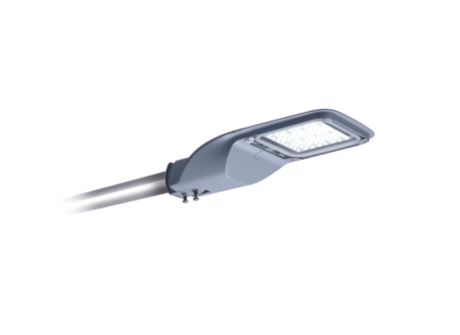

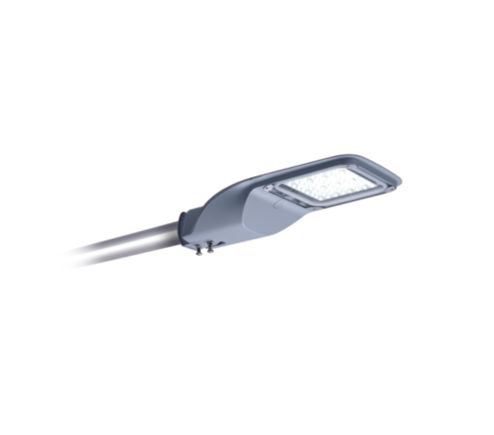

BRP471 LED 175/NW 135W 220-240V DME

Specifications Show all

Operating and Electrical

Power Consumption	135 W
Cable	-
Input Frequency	50 or 60 Hz
Line Frequency	50 or 60 Hz
Connection	Mains outlet socket
Power Factor (Fraction)	0.9
Input Voltage	220 to 240 V

Approval and Application

Surge Protection (Common/Differential)	Luminaire surge protection level until 15 kV differential mode and 15 kV common mode
CE mark	CE mark
Flammability mark	For mounting on normally flammable surfaces
Protection class IEC	Safety class I
Mech. impact protection code	IK08  [5 J vandal-protected]
ENEC mark	-
Ingress protection code	IP66  [Dust penetration-protected, jet-proof]

Product Data

Material number (12NC)	911401659005
Order code	911401659005
Numerator - Packs per outer box	1
Order product name	BRP471 LED 175/NW 135W 220-240V DME
Full product code	911401659005
Full product name	BRP471 LED 175/NW 135W 220-240V DME
Numerator - Quantity Per Pack	1

Controls and Dimming

Constant light output	No
Dimmable	No
Control interface	-

General Information

Light source engine type	LED
Light source replaceable	No
Driver included	Yes

Mechanical and Housing

Dimensions (Height x Width x Depth)	111 x 367 x 719 mm
Overall height	111 mm
Optical cover/lens material	Polycarbonate
Overall width	367 mm
Optical cover/lens finish	Clear
Effective projected area	0.23 m²
Optic material	Polycarbonate
Overall length	719 mm
Housing Material	Aluminum die cast
Housing Color	Gray
Mounting device	Side-entry for diameter 48 to 60 mm
Optical cover/lens shape	Ball, globular

Initial Performance (IEC Compliant)

Luminous flux tolerance	+/-10%
Initial chromaticity	(0.38, 0.38) SDCM < 5
Power consumption tolerance	+/-10%

Temperature

Ambient temperature range

-40 to +50 °C

Light Technical

Correlated Color Temperature (Nom)	4000 K
Luminous Efficacy (rated) (Nom)	130 lm/W
Luminous Flux	17,500 lumen
Standard tilt angle posttop	-
Light source color	740 neutral white
Color rendering index (CRI)	>70
Optical cover/lens type	Polycarbonate micro lens optic
