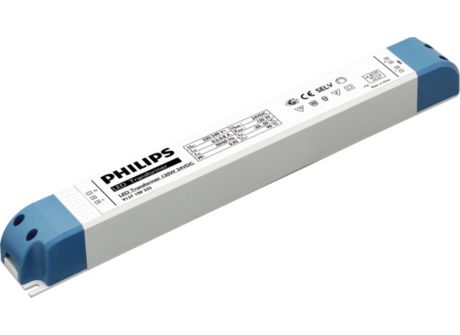

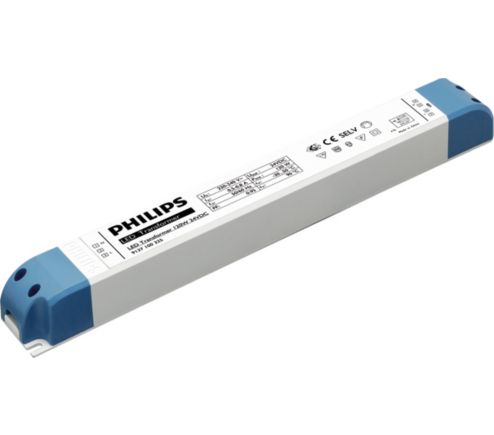

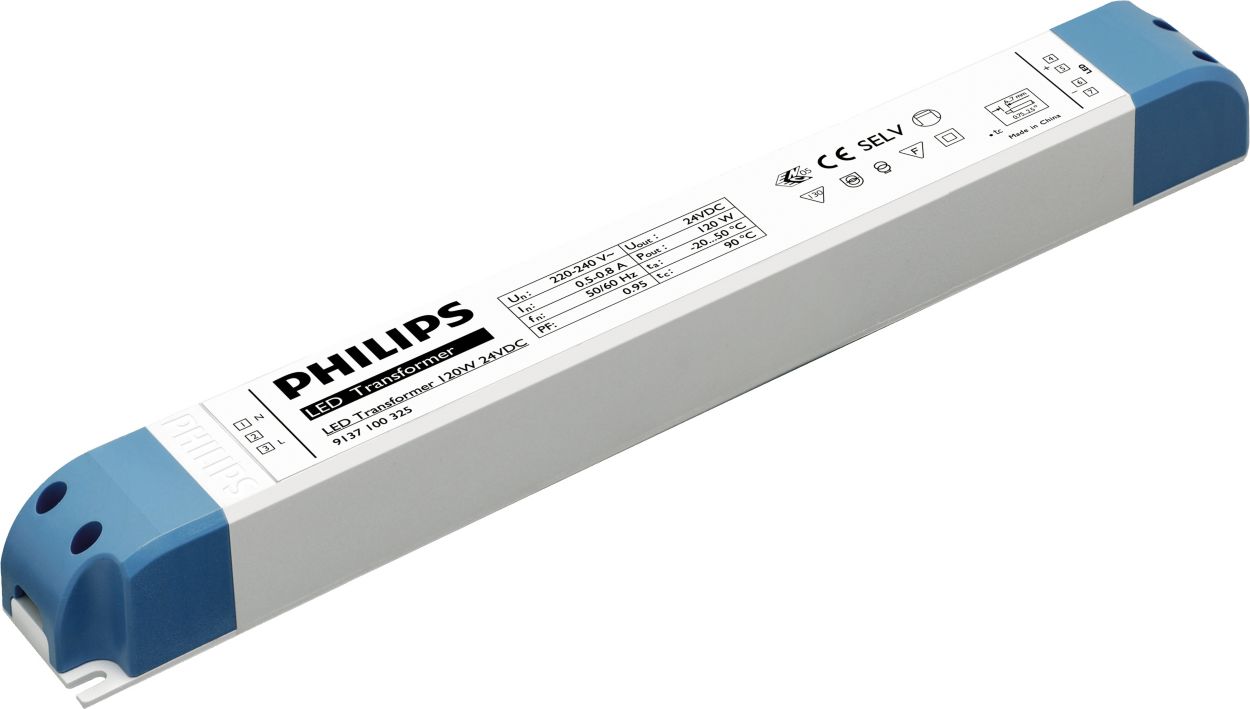

LED Transformer 120W 24VDC

Specifications Show all

General information

Lamp type	LV Halogen
Number of products on MCB (16 A type B) (max.)	12
Automatic restart	Yes

Operating and electrical

Input Voltage	220 to 240 V
Input frequency	50 to 60 Hz
Operating frequency (nom.)	45-66 kHz
Power factor 100% load (nom.)	0.95
Ignition time (nom.)	0.8 s
Mains voltage performance (AC)	202...254V
Mains voltage safety (AC)	-8%-+6%
Inrush current width	0.32 ms
Power losses (nom.)	15 W
Inrush current peak (max.)	35 A
Output voltage	11.3 V

Wiring

Connector type input terminals	Screw
Connector type output terminals	Screw
Cable length from device to lamp	1.0 m
Wire strip length	6.0-8.0 mm
Input terminal cross section	0.75-2.50 mm²
Output terminal cross section	0.75-2.50 mm²

System characteristics

Rated ballast-lamp power

120 W

Temperature

T-ambient (max.)	50 °C
T-ambient (min.)	-20 °C
T storage (max.)	80 °C
T storage (min.)	-40 °C
T case lifetime (max.)	65 °C
T-Case maximum (max.)	90 °C

Approval and application

Approval marks

CE marking

RoHS Compliant

CCC certificate

SELV

ENEC certificate

Product data

Full product code	694793910202000
Order product name	LED Transformer 120W 24VDC
EAN/UPC – product	6947939102020
Order code	913710032567
SAP numerator – quantity per pack	1
Numerator – packs per outer box	20
SAP material	913710032567
Net Weight (Piece)	0.400 kg
